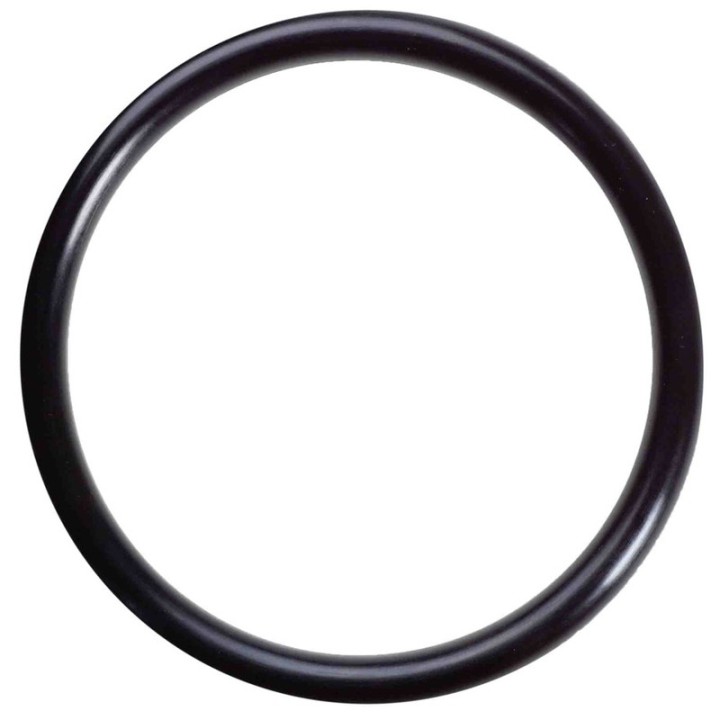

Deze assortimentsbox bevat 419 O-ringen in 32 maten. Deze O-ringen zijn gemaakt van NRB (nitrilbutadieenrubber of kortweg nitrilrubber) en worden voornamelijk gebruikt als afdichtingsmateriaal (pakking). Dit NBR rubber heeft een hardheid 70° Shore A en is goed bestand tegen olieën en vetten en hebben goede mechanische eigenschappen.
Gerelateerde producten

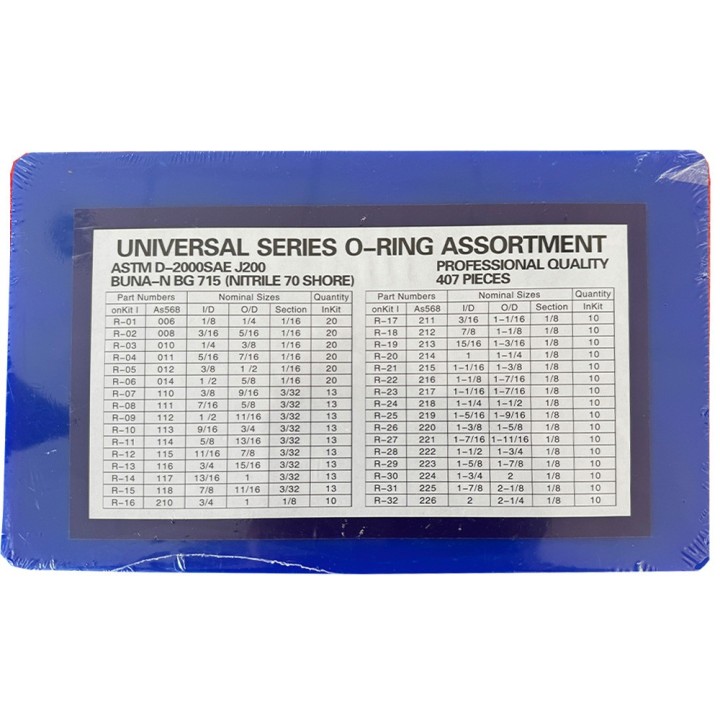

| Part Number | AS568 | I/D (inch) | O/D (inch) | Section (inch) | Quantity |
|---|---|---|---|---|---|
| R-01 | 006 | 1/8 | 1/4 | 1/16 | 20 |
| R-02 | 008 | 3/16 | 5/16 | 1/16 | 20 |
| R-03 | 010 | 1/4 | 3/8 | 1/16 | 20 |
| R-04 | 012 | 5/16 | 7/16 | 1/16 | 20 |
| R-05 | 014 | 3/8 | 1/2 | 1/16 | 20 |
| R-06 | 110 | 3/8 | 9/16 | 3/32 | 13 |
| R-07 | 111 | 7/16 | 5/8 | 3/32 | 13 |
| R-08 | 112 | 1/2 | 11/16 | 3/32 | 13 |
| R-09 | 113 | 9/16 | 3/4 | 3/32 | 13 |
| R-10 | 114 | 5/8 | 13/16 | 3/32 | 13 |
| R-11 | 115 | 11/16 | 7/8 | 3/32 | 13 |
| R-12 | 116 | 3/4 | 15/16 | 3/32 | 13 |
| R-13 | 210 | 3/4 | 1 | 1/8 | 10 |
| R-14 | 211 | 13/16 | 1-1/16 | 1/8 | 10 |
| R-15 | 212 | 7/8 | 1-1/8 | 1/8 | 10 |
| R-16 | 210 | 15/16 | 1-3/16 | 1/8 | 10 |
| R-17 | 213 | 1 | 1-1/4 | 1/8 | 10 |
| R-18 | 214 | 1-1/16 | 1-5/16 | 1/8 | 10 |
| R-19 | 215 | 1-1/8 | 1-3/8 | 1/8 | 10 |
| R-20 | 216 | 1-3/16 | 1-7/16 | 1/8 | 10 |
| R-21 | 217 | 1-1/4 | 1-1/2 | 1/8 | 10 |
| R-22 | 218 | 1-5/16 | 1-9/16 | 1/8 | 10 |
| R-23 | 219 | 1-3/8 | 1-5/8 | 1/8 | 10 |
| R-24 | 220 | 1-7/16 | 1-11/16 | 1/8 | 10 |
| R-25 | 221 | 1-1/2 | 1-3/4 | 1/8 | 10 |
| R-26 | 222 | 1-9/16 | 1-13/16 | 1/8 | 10 |
| R-27 | 223 | 1-5/8 | 1-7/8 | 1/8 | 10 |
| R-28 | 224 | 1-11/16 | 1-15/16 | 1/8 | 10 |
| R-29 | 225 | 1-3/4 | 2 | 1/8 | 10 |
| R-30 | 226 | 1-7/8 | 2-1/8 | 1/8 | 10 |
| R-31 | 227 | 2 | 2-1/4 | 1/8 | 10 |
| R-32 | 228 | 2-1/8 | 2-3/8 | 1/8 | 10 |
